VX 4 Video Input
Max Number of Unique Inputs
| Media Server | 3G-SDI | 12G-SDI |
|---|---|---|
| VX 4 | 16 | 12G is only possible with Quad Link 3G-SDI for 4x 4K inputs |
Supported Formats
All video standards outlined here have been tested up to the following:
- Bit depth - 10-bit (all modes).
- Chroma subsampling - YCbCr 4:2:2 (all modes).
- Each SDI input supports 3G Level A and Level B when applicable.
- All Quad Link formats support either square division or two-sample interleave (2SI) methods.
Quadlink 4K DCI (4096 x 2160 using 4x 2048 x 1080 inputs)
4K DCI 47.952p, 4K DCI 48p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p
Quadlink UHD (3840 x 2160 using 4x 1920 x 1080 inputs)
2160p50, 2160p59.94, 2160p60
2K DCI (2048 x 1080)
2K DCI 23.98p, 2K DCI 23.98psf, 2K DCI 24p, 2K DCI 24psf, 2K DCI 25p, 2K DCI 25psf, 2K DCI 29.97p, 2K DCI 29.97psf, 2K DCI 30p, 2K DCI 30psf, 2K DCI 47.952p, 2K DCI 48p, 2K DCI 50p, 2K DCI 59.94p, 2K DCI 60p
Full HD (1920 x 1080)
1080p23.98, 1080psf23.98, 1080p24, 1080psf24, 1080p25, 1080psf25, 1080p29.97, 1080psf29.97, 1080p30, 1080psf30, 1080p50, 1080i50, 1080p59.94, 1080i59.94, 1080p60, 1080i60
HD (1280 x 720)
720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
Back-Plate Layout

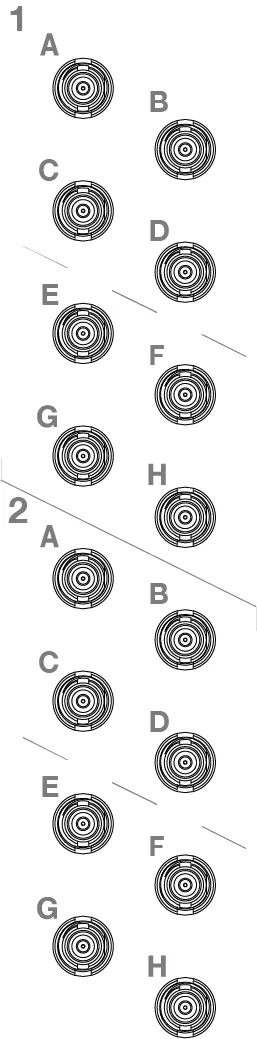

Diagram of Video Capture BNC
connections on rear of unit
